$ pip install PythonMeta

About | How to input data? | About the output plots | About the data type | PythonMeta Module | About the author | Chinese trials searching, screening & data-extracting Services | DISCLAIMER


PyMeta is an online Meta-analysis tool website. It was created and supported with Python, a strong and amazing computer language.

This web-based application was designed to perform some Evidence-based medicine (EBM) tasks, such as:

Statistical algorithms in this software cited from:
Jonathan J Deeks and Julian PT Higgins, on behalf of the Statistical Methods Group of The Cochrane Collaboration. Statistical algorithms in Review Manager 5, August 2010.

Our web pages were well-compatible to handhold sets, e.g. android and iPhone, which means you can access this tool via mobile phone anywhere anytime, enjoy!

This is an ongoing project, so, any questions and suggestions from you are very welcome.

Please contact me with email, or say some words in Guestbook.

Please cite me in any publictions like:
Deng Hongyong. PythonMeta, Python module of Meta-analysis, cited 2018-07-09 (or your time); 1 screen(s). Available from URL:

Thank you.

Go Top

How to input data?

You can type or paste your studies into the data-input textarea.

Each study in one line, like:

study name, e1, n1, e2, n2

for binary data:

e1,n1: events and number of experiment group;
e2,n2: events and number of control group.


Fang 2015, 15, 40, 24, 37
Gong 2012, 10, 40, 18, 35
Liu 2015, 30, 50, 40, 50
Long 2012, 19, 40, 26, 40
Pan 2015a, 57, 100, 68, 100
Wang 2001, 13, 18, 17, 18
Wang 2003, 7, 86, 15, 86

#This is a sample of binary data.
#Input one study in a line;
#Syntax: study name, e1, n1, e2, n2
#e1,n1: events and number of experiment group;
#e2,n2: events and number of control group.


study name, m1, sd1, n1, m2, sd2, n2

for continuous data:

m1, sd1, n1: mean, SD and number of experiment group;
m2, sd2, n2: mean, SD and number of control group.

Atmaca 2005, 20.9, 6.0, 15, 27.4, 8.5, 14
Guo 2014, 12.8, 5.2, 51, 11.9, 5.3, 51
Liu 2010, 23.38, 5.86, 35, 24.32, 5.43, 35
Wang 2012, 15.67, 8.78, 43, 18.67, 9.87, 43
Xu 2002, 15.49, 7.16, 50, 21.72, 8.07, 50
Zhao 2012, 12.8, 5.7, 40, 13.0, 5.2, 40

#This is a sample of continuous data.
#Input one study in a line;
#Syntax: study name, m1, sd1, n1, m2, sd2, n2
#m1, sd1, n1: mean, SD and number of experiment group;
#m2, sd2, n2: mean, SD and number of control group.

Tags like '<subgroup>name=subgroup_name' can mark all studies above as a subgroup.
And a tag of '<nototal>' can hide overall result of subgroup analysis.

Fang 2015,15,40,24,37
Gong 2012,10,40,18,35
Liu 2015,30,50,40,50
Long 2012,19,40,26,40
Wang 2003,7,86,15,86
<subgroup>name=short term
Chen 2008,20,60,28,60
Guo 2014,31,51,41,51
Li 2015,29,61,31,60
Yang 2006,21,40,31,40
Zhao 2012,27,40,30,40
<subgroup>name=medium term

#This is a sample of subgroup.
#Cumulative meta-analysis and Senstivity analysis will blind to all <subgroup> tags.
#And you can add a line of <nototal> to hide the Overall result.
Go Top

About the output plots

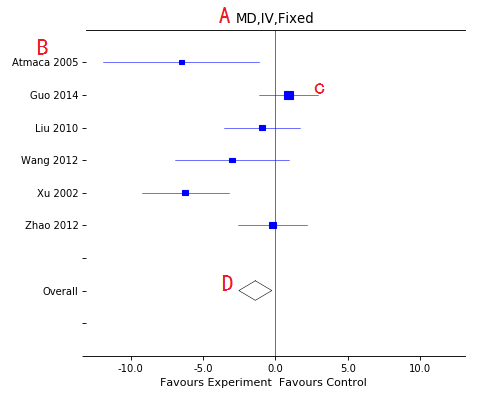

Forest plot

Forest plot

A, Title of the plot with some information:

- Effect measure: MD-Mean difference,SMD-Standard mean difference,RR-Risk ratio, OR-Odds ratio, RD-Ratio difference;
- Algorithm: IV-Inverse variance,MH-Mantel Haenszel,Peto;
- Effect models: Fixed or random models;

B, Included studies list;

C, Each study's effect, include CI line and central block(position for effect and size for weight);

D, Overall effect diamond, empty for high heterogeneity (I-square more than 50%) and filled for lower heterogeneity.

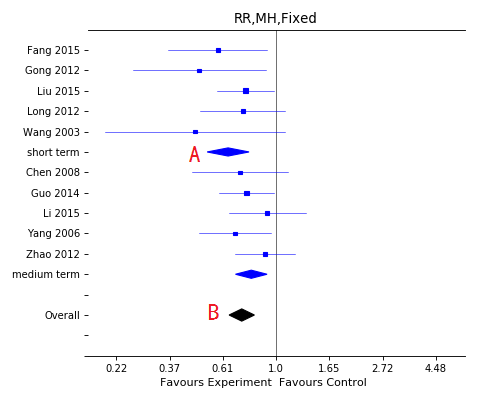

Forest plot with subgroup

Forest plot with subgroup

A, Subgroup effect;

B, Overall effect.

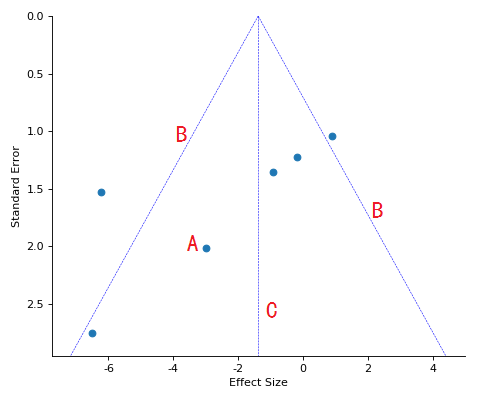

Funnel plot

Funnel plot

A, Scatter dots of studies;

B, Boundary lines of effect;

C, Overall effect line.

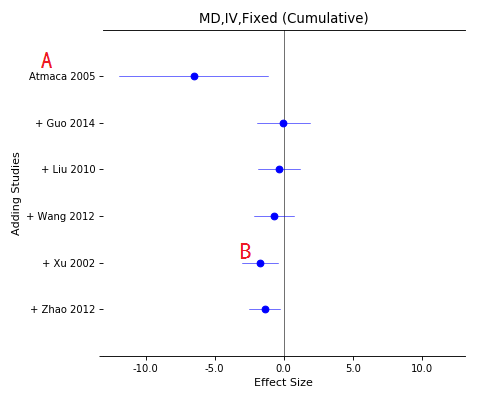

Forest plot of cumulative meta-analysis

Forest plot of cumulative meta-analysis

A, The cumulative studies list (downward);

B, Total effects while each study added in the pool.

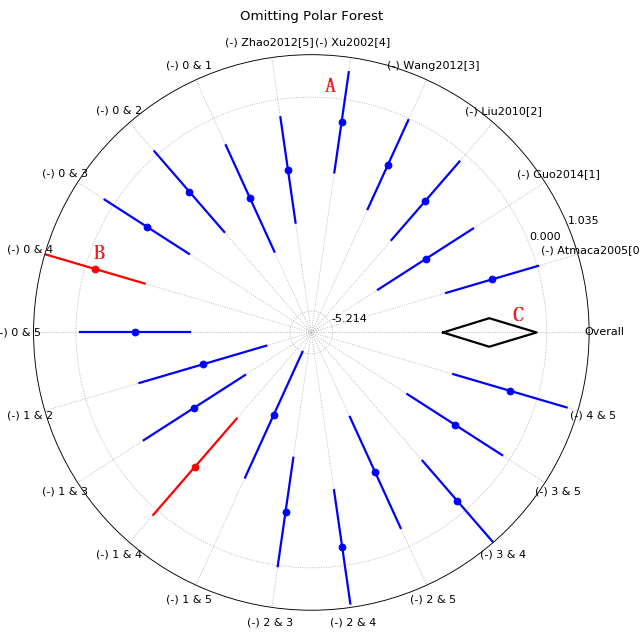

Polar_forest plot of sensitivity meta-analysis

Polar_forest plot of sensitivity meta-analysis

This kind of figure is designed for reviews with large amounts of trials, and map the normal forest plot into a polar plot.

A, Effect while one or two trial(s) be removed, blue color means the I-square are still higher than 50%;

B, Red line for those I-square decreased to below 50% while one(or two) study removed;

C, Overall effect diamond (without any trial removed), again, empty for high heterogeneity and filled for lower heterogeneity.

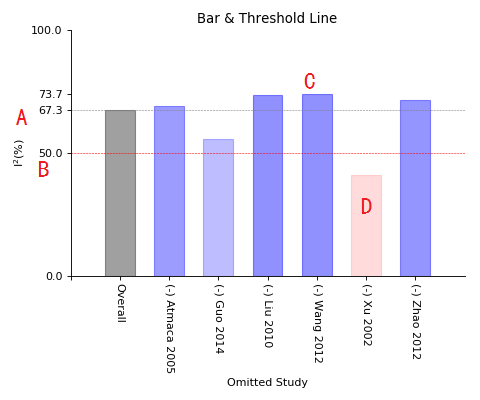

Bar_line of sensitivity meta-analysis

Bar_line of sensitivity meta-analysis

A, I-square value of overall test;

B, 50% I-square line ('50%' always regarded as threshold value, lower means fewer heterogeneity and higher means high heterogeneity);

C, I-square bar, grey for overall, blue for those one(or two) study removed, but I-square still higher than 50%;

D, Red bar for those I-square decreased to below 50% while one(or two) study removed.

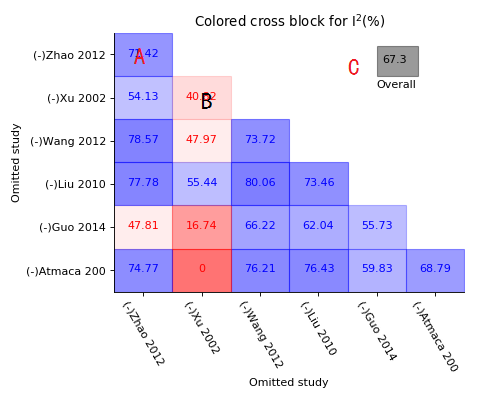

Colored cross block of sensitivity meta-analysis

Colored cross block of sensitivity meta-analysis

A, Each block shows the I-square value of which two crossed studies were removed, blue block for those I-square still higher than 50% after removing;

B, Red block for those I-square decreased to below 50% while two studies removed;

C, Grey for overall I-square.

Go Top

About the data type

There are two options of study data type here: count data and continuous data.
Count data, also known as binary/categorical/dichotomous data, it is usually some non negative integers, used for event counting.
Continuous data, a class of real numbers(i.e. with a decimal point), usually used to record the range or level of the observed value.

Links: Statistical data type

Go Top

PythonMeta Module

This is a Python Meta-Analysis package.

Install and update using pip:
pip install PythonMeta

Functions and Classes

There are four functions/classes in PythonMeta package:

Help()(function): Show help information of PythonMeta.

Data()(class): Set and Load data to analysis.

Meta()(class): Set and perform the Meta-Analysis.

Fig()(class): Set and draw the result figures.

Sample code and datafiles: download

Go Top

About the author

Hongyong Deng

Ph.D., Professor
Academic Visitor of Nottingham Univ., UK
Editor of Cochrane Schizophrenia Group (Current Editors)

Science and Technology Information Center
Shanghai University of Traditional Chinese Medicine
1200 Cailun Road, Pudong New District
Shanghai, China 201203
